Click on a picture to enlarge.

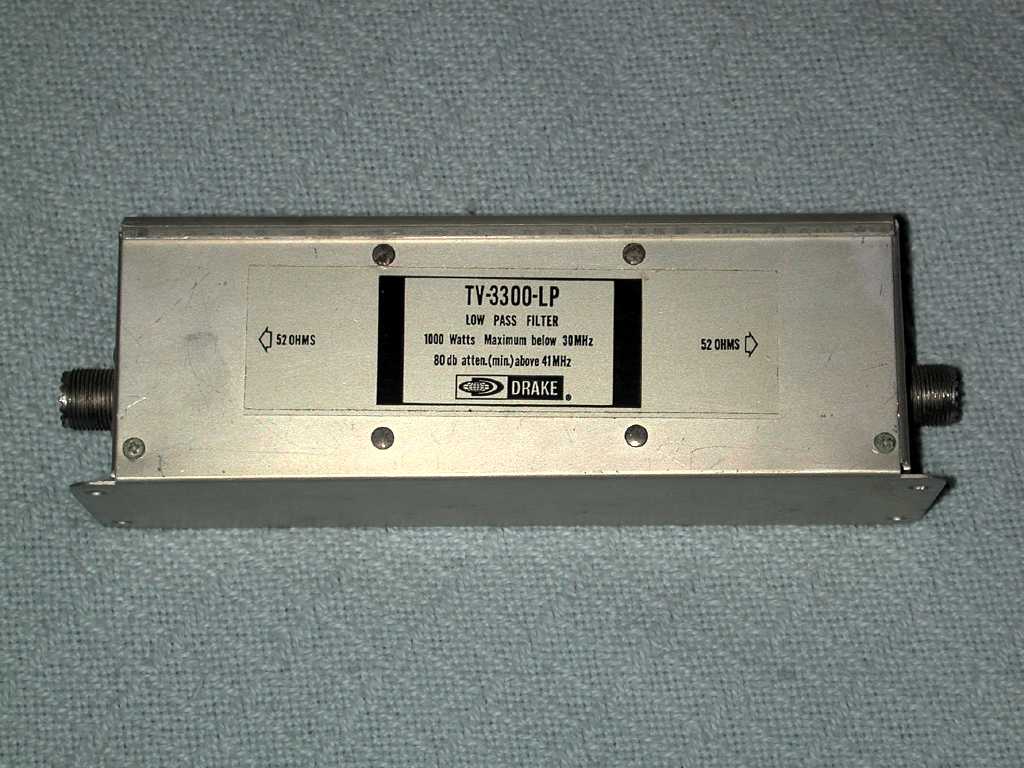

The Drake TV-3300 Low-pass filter works on all HF bands through 10-meters. It has a cutoff frequency of 33 MHz, and provides a minimum of 80 dB of attenuation above 41 MHz. Unit is rated for 1 KW average power at 52 ohms impedance. Insertion loss is less than 0.25 dB below 29 MHz. The unit measures 8-1/2 x 2-1/2 x 2-1/2 inches. It uses standard SO-239 UHF connectors.
The 260C is a dry dummy load that covers DC to 650 MHz (SWR 1.1: 1 to 30 MHz; 1.3: 1 to 650 MHz). It can dissipate up to 300 watts for 30 seconds followed by a two minute cool-down. Continuous dissipation is 25 watts. The unit measures 7 x 2-1/2 x 2-1/2 inches. It uses a standard SO-239 UHF connector.
[This is a used trap dipole with a length of coax attached. More information to follow.]
The CH-72S is a flexible handheld whip antenna. It functions as a quarter wave on 2 meters and 5/8 wave on 3/4 meters. This antenna provides improved gain over the rubber duck HT antenna that comes with most handhelds. It has a BNC connector.
This model antenna is currently in production. It is small and designed to fit a handheld radio. It covers 2 meters and 3/4 meters. The connector is an SMA type. Antenna length is 8-1/2 inches.
This HT antenna appears to be a Comet SMA-24 hendheld antenna. It measures 17" in length, is black in color and is very flexible. The antenna has an SMA gold-plated connector.

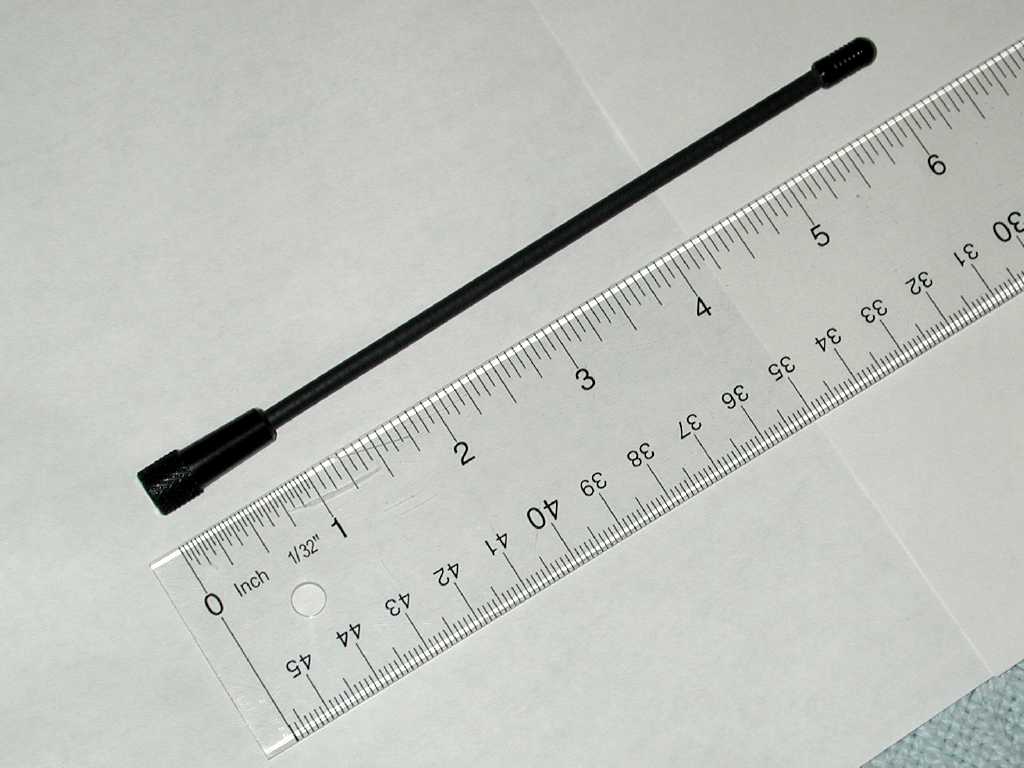

This is an unusual HT type antenna. Model and type is unknown. The antenna is 6-1/8" in length and and has a heavy knurled 10-32 female nickel-plated thread connector; it evidently mounts to a radio that has a male 10-32 stud antenna. Unit is black and looks well constructed.

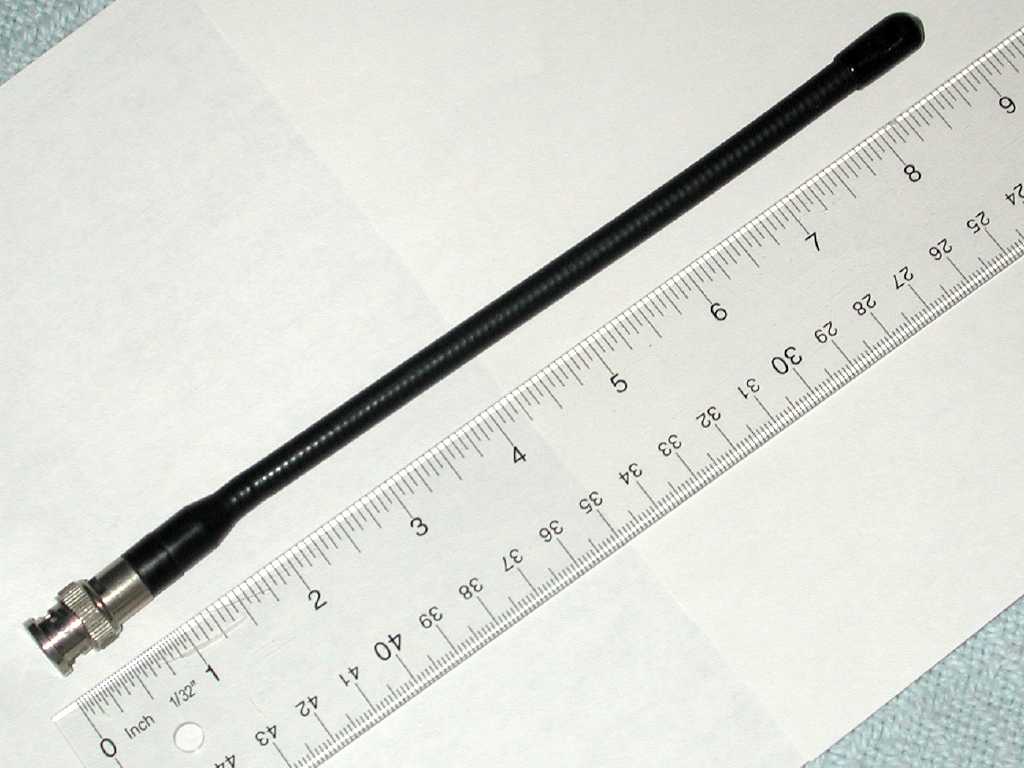

This is a "rubber duckie" type HT antenna. Model and type is unknown. The antenna is 8-3/4" in length and and has a nickel-plated BNC connector. Unit is black. Resonant on 2-meters
The AL-800 is a telescoping handheld antenna that covers 2 meters and 3/4 meters. This antenna provides improved gain over the rubber duck HT antenna that comes with most handhelds. It has a BNC connector. Extended it is 34 inches long and collapses to 10 inches.
HMO mobile mount for mobile antenna. Model unknown at this time.
This is an Alpha Delta two-position antenna switch model 2B.
This is a window mount for a car that holds a rubber-duck or small whip HT antenna. Fits both BNC and SMA antennas.
This is a collection of coils and masts for mobile operation made by Hustler.
This equipment is from the estate of Ed, K6JGN.
NOTE: All items from the estate have been sold.
Original date of page: May 13, 2010
